Building a deliberate flow for the modern IFR cockpit
The physical instrument scan has gotten smaller. The cross-check has gotten bigger.
Mention “instrument cross-check” to most instrument pilots and they probably picture the scan learned during instrument training—attitude, airspeed, altitude, heading and the other flight instruments, perhaps with the attitude indicator at the center of a familiar hub-and-spoke pattern. That cross-check still matters. But this isn’t another article about how to scan the flight instruments, nor is it another debate about whether modern pilots rely too much on automation.
Instead, consider the cross-check more broadly: a deliberate flow of attention that follows the flight from engine start through shutdown. Its purpose is to maintain awareness of the aircraft’s flight path and support what the FAA calls Flightpath Management.
FAA Advisory Circular 120-123 defines Flightpath Management (FPM) as “the planning, execution, and assurance of the guidance and control of aircraft trajectory and energy, in flight or on the ground.” Although the AC is directed primarily at Parts 121 and 135 operators and Part 142 training centers, the FAA encourages other operators and training providers to consider its guidance as appropriate.
That definition works just as well in a technically advanced GA airplane. The instrument cross-check is the process. Effective Flightpath Management is the objective.
A Scan and a Flow
Modern glass cockpits have made part of the traditional instrument scan easier. Information that once required our eyes to travel around the panel is now consolidated on a PFD. The physical scan has gotten smaller, but the cognitive cross-check has gotten larger.
Now we also need to monitor the flight director, Flight Mode Annunciations (FMA), autopilot, active GPS leg, selected altitude, navigation source, engine and system indications, CAS messages, terrain, weather and configuration.
A modern instrument pilot needs both a scan and a flow. The scan tells us what is happening. The flow directs our attention toward the information most important to what the airplane is doing—or is about to do.
Three questions help keep that flow oriented:
What is the airplane doing?
What is the automation doing?
What should happen next?
Above all, keep coming back to the flight path.
Before Taxi
The cross-check begins before the airplane moves. Consider a deceptively simple checklist item such as “Radios/Avionics—As Required.” That should mean much more than tuning a frequency.
Listen to ATIS or AWOS, determine the runway in use and set the altimeter. Load the flight plan and compare it with the source used to plan the flight. I also like a gross-error check of total distance. If the flight-planning app shows 412 NM and the navigator shows about 410, that is reassuring. If it shows 869, stop and find out why.
After receiving the IFR clearance, act on each element that can appropriately be preset. If cleared runway heading, then as filed, maintain 3,000, departure 119.35 and squawk 1234, set those items and verify them. Don’t rely on memory for information that can safely be programmed in the avionics before taxi.
Takeoff and Climb
As the airplane aligns with the runway, verify the runway and heading. As power is applied, check engine indications, then airspeed. After liftoff, the emphasis shifts toward attitude, airspeed, flight path, engine indications and altitude.
The cross-check should also tell us where we are in the takeoff contingency plan briefed before departure. The available response to an abnormality can change dramatically as runway remaining and altitude change. Those decision points will differ among airplanes—including multiengine aircraft and CAPS-equipped Cirrus aircraft—but the principle is universal: know which options are available now.
Changes in the environment should change the cross-check too. Entering clouds or visible moisture should bring OAT, pitot heat and possible airframe icing into the flow. It should go without saying that encountering icing conditions in an airplane not approved for flight into known icing means finding another altitude or route—or otherwise exiting the icing conditions. In a FIKI-approved airplane, a trained and current pilot should be prepared to use the ice-protection systems in accordance with the POH.
Automation after takeoff requires the same discipline. Any autoflight change should trigger an immediate look at the FMA—the “scoreboard.”
Don’t verify the button you pushed. Verify the result.
I’ve been having turbine-transition students verbalize the FMA after any autoflight change. Select HDG, look at the FMA and say what is actually displayed. Arm NAV and verbalize what the FMA actually shows. The purpose isn’t to turn a single-pilot cockpit into an airline cockpit. Instead, this process helps build the discipline of looking at the FMA after every change. I like to say that the buttons you push are rumor. The FMA—the scoreboard—is fact.
Then return to the flight path. Continually compare what the autoflight system is doing with the desired and anticipated flight path of the aircraft.
Cruise: Look Ahead
In cruise, the cross-check broadens and slows somewhat, but it never stops. Continue monitoring the flight path while periodically scanning engine and system indications, maintaining fuel awareness and planning, monitoring weather and avoiding developing threats, and requesting course or altitude adjustments necessary to provide a smooth ride for passengers.
Cruise is also the time to prepare for what comes next. Determine a top of descent. In an unpressurized airplane, I typically plan around a comfortable 500–600 fpm descent. In a pressurized turbine, a three-degree descent path is a useful planning baseline.
Before top of descent, obtain landing weather and brief the STAR, if applicable, and the planned instrument approach. Compare the procedure loaded in the GPS with the current chart. Verify the waypoint sequence, altitude and speed restrictions, and threats such as terrain and weather. Professional pilots try to have this work completed before TOD, because workload—and threats such as traffic and terrain—are about to increase. A good cruise cross-check doesn’t just monitor the flight you’re flying. It prepares you for the flight you’re about to fly.
Descent: Manage the Energy
Descent turns Flightpath Management into a three-dimensional challenge. We need to arrive at the landing field laterally and vertically positioned, but also at an airspeed and energy state that allow an orderly transition to the approach.
VNAV is an excellent tool for solving that problem. Many modern GPS navigators can provide VNAV guidance, and many modern autopilots can fly VNAV when selected. But VNAV does not relieve the pilot of managing the descent. It gives us another source of guidance to monitor and verify.
This becomes increasingly important at higher altitudes and in heavier aircraft. Some swept-wing airplanes, like the Boeing 757 I fly, simply cannot go down and slow down at the same time. Vertical planning matters.
The principle scales directly to GA: don’t let VNAV deliver you to the correct altitude with the wrong energy state.
Our goal is to arrive at the final approach fix at an altitude and airspeed that allow us to reach final landing configuration and establish a stable approach. Reaching the FAF at the correct altitude does little good if we are still above flap or gear-extension speeds and cannot get configured.
The cross-check therefore needs to look forward: Am I going to arrive there with an energy state that lets me configure and stabilize the airplane?
Approach: Verify What You Have
On an instrument approach, the cross-check should deliberately follow the waypoint sequence. As each waypoint approaches, know the altitude restriction, desired airspeed and configuration, and the automation change you expect next. Then verify that it actually happens.
For a ground-based approach, ensure the NAVAID is properly identified before relying on it for the approach. For an RNAV (GPS) approach, verify the level of service annunciated by the avionics and compare it with the minimums you briefed and set. If you briefed LPV, confirm that LPV is what the system is actually providing.
Inside the FAF, the instrument cross-check should confirm that we are maintaining a stable approach. A good target is to arrive at the FAF at an altitude, airspeed and configuration that make that possible, and to be stabilized no lower than the applicable gate—typically 1,000 feet AGL in IMC.
After Landing
The cross-check follows the airplane onto the ground. After landing, it transitions toward excellent situational awareness during taxi.
Use the airport diagram—preferably a moving map zoomed appropriately—to maintain situational awareness all the way to parking. At a towered airport, listen to and understand the taxi clearance, then compare it with the diagram. Identify the route, runway crossings, hold-short instructions and hot spots. At a non-towered airport, monitor the common traffic frequency to build a picture of other traffic while using the diagram to determine your taxi route and identify threats along it. The flying isn’t over just because the wheels are on the ground.
The Cross-Check Follows the Flight
The traditional instrument scan remains fundamental. A pilot trained entirely on glass should not assume that proficiency automatically transfers to conventional instruments, just as a pilot with an excellent traditional scan may need to develop a broader flow when transitioning to an integrated glass cockpit.
The answer isn’t less automation or more automation. It is disciplined Flightpath Management.
The cross-check should change as the flight changes, always directing attention toward what matters now and what will matter next. Every selection deserves verification. Every automation change should be checked against the FMA and then against the aircraft’s actual trajectory and energy state.
Keep asking:
What is the airplane doing?
What is the automation doing?
What should happen next?
The physical scan may have gotten smaller. The cross-check has gotten bigger.
https://media.ifrfocus.com/wp-content/uploads/2025/07/25104136/quiz-category.png744993Tim Deckerhttps://media.ifrfocus.com/wp-content/uploads/2025/07/14115136/IFR-Focus-Logo_White_Blue_Web-01.pngTim Decker2026-10-06 07:45:532026-10-11 18:46:08The Instrument Cross-Check Is Bigger Than You Think

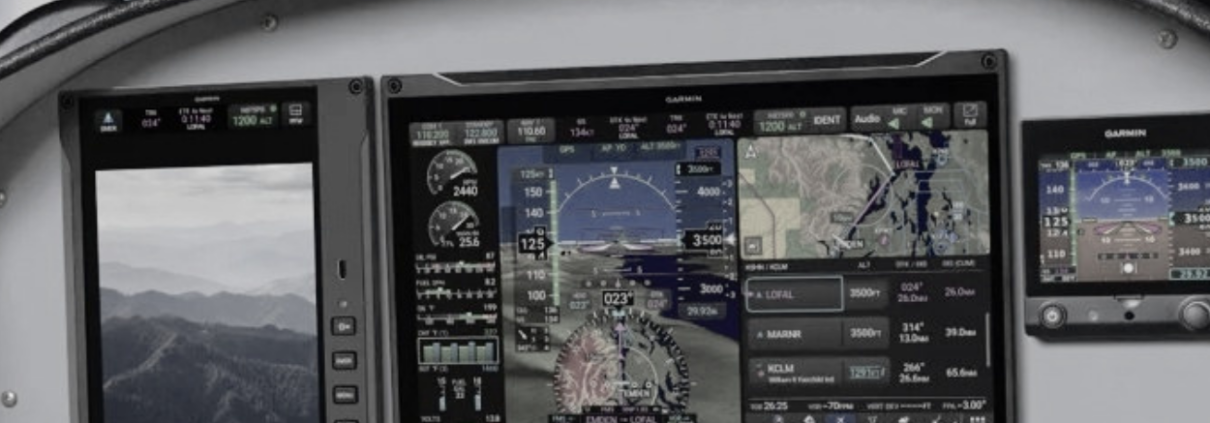

Garmin’s new AXIS Flight Displays bring a new generation of avionics technology to the cockpit, with features designed to improve situational awareness and simplify cockpit operations. But what’s actually new—and what do pilots need to know about the technology behind the displays?
Garmin’s Chun Hei Ng provides a first look at AXIS. Luke will walk through key features including 3D SafeTaxi, onboard data logging, and the Flight Management System (FMS), with an emphasis on why understanding the FMS is important for pilots. He also explains what’s new with AXIS and how the various models and variants differ.
When controllers anticipate a delay, usually due to a high volume of traffic, weather, or both, pilots are usually issued a holding clearance. If the holding pattern assigned by ATC is charted, pilots are expected to hold as indicated. Holding patterns at the most generally used holding fixes are charted on Low or High Altitude En Route, Area, Departure Procedure, and Arrival Charts. When ATC issues a clearance requiring you to hold at a fix where a holding pattern is not charted, pilots are issued complete holding instructions. The holding instructions will include:
the direction from the fix
name of the fix, course
leg length (if distance instead of time)
direction of turns (if left turns are required)
the expect further clearance (EFC) time.
Let’s look at holding clearance example below to identify the various components (note the absence of turn direction indicates standard, right hand turns are expected):
Hold north (direction from the fix) of Volunteer on the 360 degree radial (name of VOR fix and course), five mile legs (leg length), expect further clearance at 15:50 zulu (EFC) time now, 15:40 zulu (current time is often issued as a courtesy so that pilots quickly know how long they may have to hold for fuel planning purposes).
Pilots are required to maintain the last assigned altitude unless a new altitude is specifically included in the holding clearance. Pilots are expected to hold on the inbound course using right turns unless instructed otherwide. In the example instructions above, the INBOUND course would be 180 degrees if holding on the 360 degree radial.
When executing a holding pattern above 14,000 feet, the inbound leg should be 1.5 minutes in duration. When at or below 14,000 feet, the inbound leg should be 1 minute. Timing of the outbound leg should begin abeam the holding fix or at the completion of the turn. Fly the first outbound leg at the appropriate standard duration, then adjust subsequent outbound legs so as to make the inbound leg the standard 1 or 1.5 minute duration. This will vary with wind.
Timing of the holding pattern should be adjusted on the outbound leg so that the inbound leg will be the standard duration.
GPS-equipped aircraft have some additional options for holding. Rather than being based on time, the leg lengths for GPS holding patterns are based on distances. The controller, or the applicable chart, specifies the length of the outbound leg. The end of the outbound leg is determined by the distance.
Charted holding procedure on the low altitude enroute chart with 5 mile legs specified.
Because the size of the holding pattern is directly proportional to the speed of the aircraft, maximum holding speeds in knots indicated airspeed (KIAS) have been designated for specific altitude ranges. Often pilots can avoid flying a holding pattern or reduce the length of time spent in the holding pattern, by slowing down on the way to the holding fix.
Maximum holding speeds in knots indicated.
Turns in the hold should be standard rate, but not more than 30 degrees. If you are using a flight director, the maximum bank angle is 25 degrees. Except when turning, you should compensate for the wind. Outbound you should triple the wind correction angle used to track the inbound course. This will distort the racetrack shape, but keep you inside the holding pattern protected airspace.
The racetrack pattern will be distored with appropriate wind correction.
The protected airspace is not charted, but it is shaped somewhat like and centered upon the holding pattern. This puts about 60% of the protected area on the holding side, so the majority of your maneuvering should be on this side.
The majority of your maneuvering should be on the hodling side as this is where the majority of the protected airspace exists.
Holding protected airspace is designed based in part on pilot compliance with three recommended holding pattern entry procedures.
Parallel Procedure. When approaching the holding fix from parrell sector, the parallel entry procedure would be to turn to a heading to parallel the holding course outbound on the nonholding side for one minute, turn in the direction of the holding pattern through more than 180 degrees, and return to the holding fix or intercept the holding course inbound.
When approaching the holding fix from anywhere in the teardrop sector, the teardrop entry procedure would be to fly to the fix, turn outbound to a heading for a 30 degree teardrop entry within the pattern (on the holding side) for a period of one minute, then turn in the direction of the holding pattern to intercept the inbound holding course.
When approaching the holding fix from anywhere in the direct sector, the direct entry procedure would be to fly directly to the fix and turn to follow the holding pattern.
To help determine which sector you fall within when approaching a holding fix, look at where the outbound course falls on your heading indicator or H-S-I when flying direct to the fix. Divide the indicator into three segments as depicted below. And for a standard right-turn hold, and you can visualize exactly what kind of entry is expected.
You can visualize exactly what kind of entry is expected when placing the outbound course on the heading indicator when flying direct to the fix.
The teardrop section is the smallest, only 70 degrees on the right of the nose. At the fix, turn to a heading 30 degrees from the outbound course toward the holding side for one minute. Then turn in the direction of the holding pattern to intercept the holding course.
The direct entry section is the largest, covering a 180-degree arc. Simply turn right outbound and fly the pattern.
The parallel segment is 110 degrees to the left of the nose. Turn to the outbound heading, correct for wind if known, fly for one minute, and then turn toward the holding pattern more than 180 degrees. Return to the holding fix or intercept the holding course inbound.
This method of visualizing the outbound course on the heading indicator is also referred to as the “thumb” method because placing your thumb to the right (for right-hand turns) or the left (for left-hand turns) will approximate the teardrop entry area as decpicted below.
Placing your thumb to the left or right of your current heading can help identify the correct holding entry procedure.
A non-standard holding pattern uses left turns, and the entry procedure diagram has to be flipped so the teardrop section is in the upper left. For non-standard left turns, use your left thumb to mark the 70-degree teardrop section, and the remaining sections fall into place. Right turns, right thumb.
The entry procedure diagram has to be flipped so the teardrop section is in the upper left for left hand turns.
It’s worth noting that modern GPS navigators can be programmed for holding procedures and coupled with an autopilot, can also fully execute a hold. There are also devices available to help determine the correct entry.

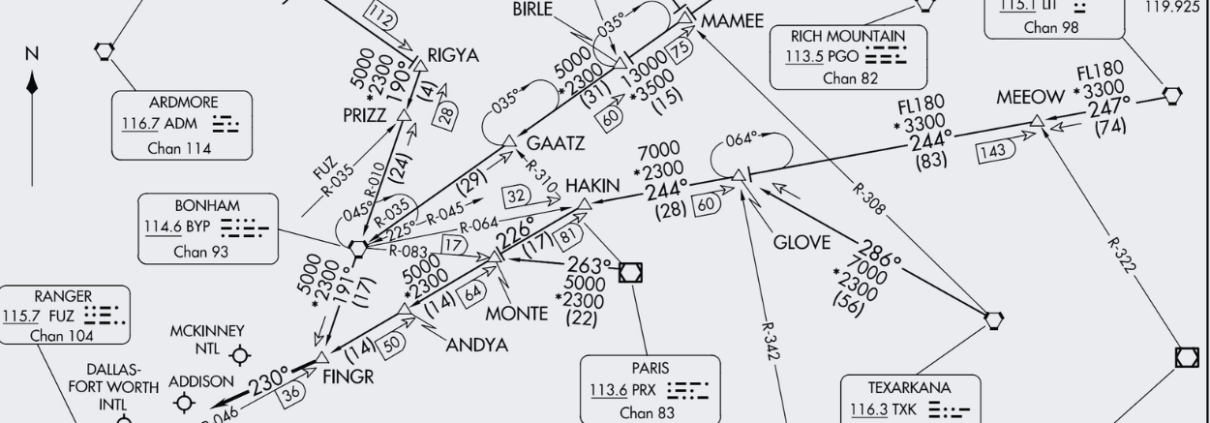

Standard Terminal Arrivals, or STARs, can seem intimidating when you first look at the chart. Multiple transitions, fixes, and routes can make a seemingly simple arrival look far more complicated than it really is. In this video tip, we’ll use the FINGER FIVE arrival into the Dallas area to break down how the different transitions come together, compare traditional VOR/DME-based STARs with modern RNAV arrivals, and look at how an IFR-approved GPS can make flying these procedures easier to understand and manage.
This video tip is from Sporty’s Instrument Rating Course. If you want to sharpen your skills and build more confidence in the system, Sporty’s Instrument Rating Course covers these required reports in detail—along with real-world scenarios and ATC audio to help you sound like a pro on every flight.
I never liked the saying, “plan the flight and fly the plan.” Most GA flying requires bending the plan to fit the reality of the moment—or ends with the breaking of something valuable. When the aircraft capabilities are limited and crew resource management consists of talking to oneself, flexibility is king.
A more useful statement might be, “plan the flight to have a plan.” These days of iPad route planning and magenta lines allow perilous absence of forethought. This was hammered home to me one day while climbing VFR towards my GPS-direct course. I realized I had absolutely no idea what heading that was. I just knew it was up and to the left. That’s not a plan. That’s tagging along for the ride.
The right plan enables flexibility by providing options, yet constraining them within safe boundaries. A perfect example of this is the under-appreciated contact approach.
See and Avoid

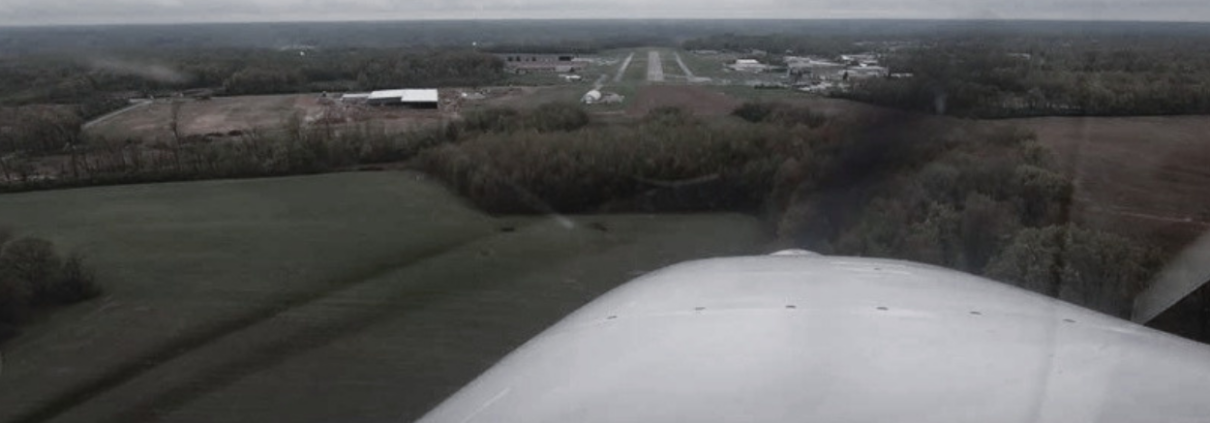

Simply put, a Contact Approach lets you keep your IFR clearance and find your own path to the runway. The requirements are remaining clear of clouds with a mile visibility and not dying as you get to the pavement.

Suppose you’re approaching an airport from the south that has only one published approach coming in from the north. As you fly over the airport, you see the runway and a clear path to descend and join final. Requesting and receiving a clearance for a contact approach lets you descend and land without trucking miles past your destination only to turn around and come back.
However, you can request a contact approach and still fly most or all of a published approach as you see fit, so long as you stay visual. You don’t even need the destination airport in sight. Imagine cruising along on an intermediate leg of a published approach that’s taking you in and out of clouds with turbulence or icing.
When you’re in the clear, request a contact approach. Once granted, you can avoid the clouds with climbs, descents, or deviations left or right of the approach course. You could still follow a published segment to help find the airport, but 400 feet lower, or a mile right of course.
Doesn’t that remove obstacle protection? Absolutely. You’re now responsible for staying out of trouble, but that might be easy in visual conditions, as they exist on a particular day.
The freedom is similar to a Special VFR clearance, however, you’re still legally IFR. Special VFR clearances are for specific blocks of airspace: the Class D surface area around a towered airport or a Class E surface area around an uncontrolled airport. Technically, the pilot has no less-than-VFR freedom outside that airspace. The contact approach clearance covers operation in any controlled airspace.
Staying IFR also keeps an IMC escape hatch open for you: With a Special VFR clearance, reentering the clouds would be an emergency; with a contact approach, it’s just a missed.
Well, it’s a missed without a procedure, which means the onus is on you to stay out of the rocks and get back to ATC immediately. Contact approaches shouldn’t end with reentering IMC, but if you have a general plan you’ll be ready for that corner case.
Which all brings us back to planning for flexibility. Flying IFR on good-weather days, you should be ready for the visual. On marginal days, you can fly the charted black lines to your destination airport but be ready for a switch to a contact approach in case the situation warrants it. That’s what masterful use of the system is all about.
Educating ATC
While most controllers are happy to offload responsibility to you and clear you for the contact approach, some controllers meet a request with, “Confirm you’re cancelling IFR?”
Whether they forgot that part of the ATC operating guidelines or just aren’t enthusiastic for something out of the ordinary, you may have to clarify. “I’m staying IFR. I’m requesting a contact approach, which is like a visual but requested by the pilot and only needs a mile visibility.”
The silence following may be them asking around the control room. Hopefully, your clearance will come back, along with all the flexibility it allows.
Reader Poll
